FROM MENDELSOHN TO BORROMINI

De La Warr pavilion.

Fleshing out the East Wing. Restaurant, Bar, Kitchen, Toilets, storerooms, terraces.  Stairs at the end of the long thin wing.  In the process I dug out more old library files, mostly furniture.



Over the past 15 years of using Revit, my strategy for maintaining a content library has evolved. Early on I was collecting anything and everything I could find. I soon decided to organise them in "collections"... Revit projects with a whole bunch of families organised by similarity.

Within these project files I could agonise about naming conventions, set up plan, front and side elevations... Do some basic quality control.



At some point it became clear to me that simple generic geometry was the way to go. Add layers of information as it becomes available and organise using schedules. It depends on the project type and the remit of your company, but for us this made sense.

So I created a new set of generic collections and gradually sidelined the other more cumbersome and complex collections as the new, simpler, more consistent library files developed. It's those older collections that I am now reviewing, upgrading and filtering for content that may be usable for historical studies.



I've been sorting through twenty years worth of digital backups, filtering out the good from the bad and gradually putting the good stuff into places where I can find it. It's not that my filing system is disorganised, but over that length of time there are bound to be periodic bottlenecks in the months preceding a laptop upgrade.

This video is five years old, but the model dates back much further. The Chapel of Sant'Ivo alla Sapienza, by Francesco Borromini is at one end of the long courtyard. He was always one of my favourites as a young man who reveled in complexity. Here it's the geometry of the floor plan and the dome that intrigues, based on intersecting triangles and circles.

Of course it would take months for one person to attempt a detailed treatment of this gem in Revit, so my version is highly simplified and abstracted. But that has always fascinated me. How to convey the essence of a complex and subtle form with simple means? The primary goal, as usual was to engage in a hands-on, immersive learning process and emerge a little wiser as a result.



BEXHILL FITOUT

I'm working on the two main stairs at Bexhill. Both sit inside bold glass cylinders that mark entrance positions, a typical Mendelsohn device. On the street side the glass is faceted, reserving the expense of larger, curved panes to tbe sea - facing version.

This faceted curtain wall is cantilevered out over the pavement. Where it meets the slim concrete canopy there is a shadow-gap detail in steel, emphasising the effect of lightness. A transparent prism hovering in space. I have used an in-place modeled sweep for this element in the Revit model.



It's not always easy to remember the location of photos taken a decade ago. There is a small landing at ground level. Three steps up, then three steps back down to a fire exit. I had this rift at first, then changed it. All part of the learning process.

It's neither possible, nor desirable to think everything out before modelling. This is my BIM pencil, an extension of my hand and brain. The thinking takes place beyond my body in the extended phenotype of laptop and software. I love this work.

Quite magical. "It's the process, cupid"

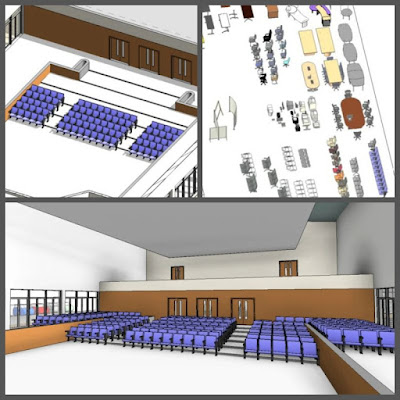

 De La Warr auditorium seating. I had to open up some old library files to find an arrayed seating family. Not perfect but it will do. I reduced the size of the nested seat family a bit, otherwise it works fine. Instance parameter for length of run. Number of seats is computed. No idea where I got this from.



I bought a book about the pavilion when I visited it in 2014. There are as-built floor plans from 1936. Between these and the photos I took it's easy enough to decide how I want to model the layout. The current layout leaves a section of flat flooring next to the stage for loose seats, dancing or whatever.

Next I moved on to the balcony. Interesting to note that the entrances come in at an intermediate level.

This session concludes with the internal layouts of the toilets and cloakrooms. All fairly straightforward but really helps to bring the building to life as a set of functional spaces.



BEXHILL BIRTHDAY

Bexhill-on-Sea has long been a sedate English seaside town on the South-East coast. Land ownership was dominated by the Earls De La Warr who were also connected to colonial ventures in the New World, lending their name to the Delaware River.

Recently I have been updating my model of the De La Warr pavilion, designed by Eric Mendelsohn and Serge Chermayeff and one of the first manifestations of Modernism in the UK. The site context was knocked together hastily in 2014 and in need of a serious overhaul.



Sadly we can no longer edit toposurfaces with all the tricks and devices I had acquired over the years, so I tried updating to a toposolid. It soon became obvious that I needed better reference information. At this point I remembered Forma.

This online tool has also changed since last I used it, but with a bit of a struggle I managed to acquire a suitable portion of the map with contours, roads and buildings. This exported to OBJ and linked to Revit. It's no use as a permanent feature of my model, but is a great reference for rebuilding the site context.



Still a very rough approximation, but it holds together well enough and the relative levels are the right order of magnitude. I'm mostly using sloping floors now. Plus crude building masses modelled in-place. Sweeps for the most part.

It's hard to imagine what a local family, (or holiday makers, in those tense years leading up to the second world war,) would have made of this alien, white, abstract sculpture washed up on the beach like a whale, ... as they went to watch a show, eat a meal, or attend a dance.

Hard to imagine but fascinating to try. "Recreating history with BIM."
